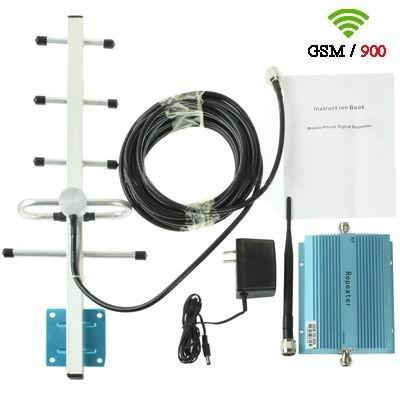

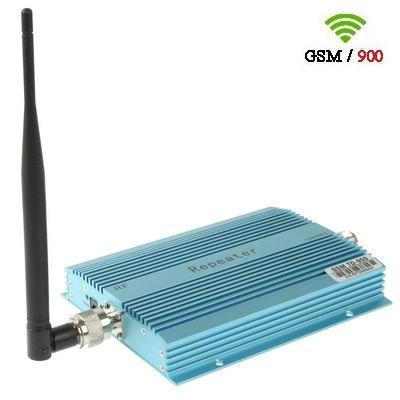

Model No

NT-AM03B

Parameter data

Uplink

Downlink

Frequency Range

       GSM

890-915mhz

935-960mhz

Output Power

20±2dBm

20±2dBm

Gain

60 ±2 dB

60±2dB

Bandwidth

60M

Ripple in Band

≤5dB

Spurious Emission

9KHz~1GHz

≤ -36 dBm

1GHz~12.75GHz

≤ -30 dBm

VSWR

≤3

MTBF

>50000 hours

Power Supply

AC:100~240V, 50/ 60Hz;DC:5V 2A

Power Consumption

< 5W

Impedance

50 ohm

Mechanical Specification

RF Connector

N-Female N

Dimensions (D*W*H )

125*110*20(mm)

Net weight

0.6Kg

Installation Type

Wall Installation

Environment Conditions

IP40

Humidity

< 90%

Operating Temperature

-10°C ~ 55°C
