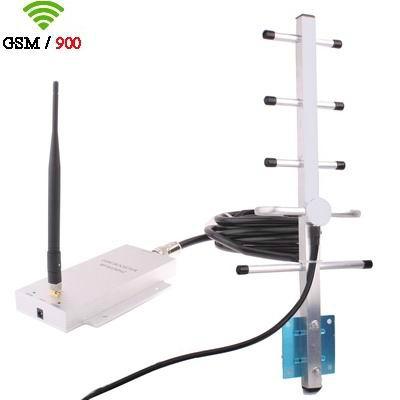

GSM booster RF 900MHZ Amplifier

GSM booster RF 900MHZ Amplifier

Model No.︰NT-AM03A

Brand Name︰-

Country of Origin︰China

Unit Price︰US $ 92 / pc

Minimum Order︰1 pc

Inquire Now

Product Description

900mhzsignal booster GSM signal repeater



dual band repeater gsm parameter data :

   Model No

NT-AM03A

Parameter data

Uplink

Downlink

Frequency Range

       GSM

890-915mhz

935-960mhz

Output Power

20±2dBm

20±2dBm

Gain

60 ±2 dB

60±2dB

Bandwidth

60M

Ripple in Band

≤5dB

Spurious Emission

9KHz~1GHz

≤ -36 dBm

1GHz~12.75GHz

≤ -30 dBm

VSWR

≤3

MTBF

>50000 hours

Power Supply

AC:100~240V, 50/ 60Hz;DC:5V 2A

Power Consumption

< 5W

Impedance

50 ohm

Mechanical Specification

RF Connector

N-Female N

Dimensions (D*W*H )

125*110*20(mm)

Net weight

0.6Kg

Installation Type

Wall Installation

Environment Conditions

IP40

Humidity

< 90%

Operating Temperature

-10°C ~ 55°C

 Why we should buy mobile signal repeater/ signal booster/ GSMamplifier :



Cell phone becomes especially helpful when people get into critical situations. In case of emergency a timely call can

save somebody’s life.

Unfortunately, there are still some places where one can find themselves “out of coverage”. Usually those places are

either too far from the cell phone base station or located inside underground constructions,

for example:

· Parking lots, tunnels

· Big stores, office buildings

· Cars, boats etc.

· House in remote areasetc

Payment Terms︰ PayPal

Product Image
